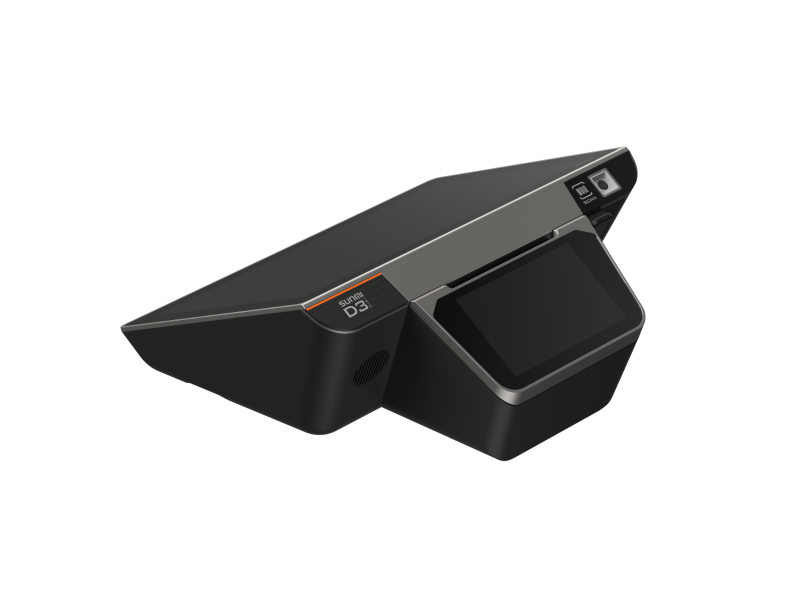

SUNMI D3 MINI Smart Desktop Terminal

SUNMI D3 MINI Smart Desktop Terminal

MINI in size, powerful inside

Speed up your operations with the Qualcomm hexa-core processor, 3GB RAM+32GB ROM. Quick response and cache loading thanks to the high read and write speed of UFS 2.2.

Visually appealing, incorporating ergonomics

D3 MINI is small in size, light in weight and comes with a 10.1 inch screen and save more space. Its ergonomically inclined main screen is also designed for better user experience.

Reliability and convenience by design

Easy to remove and maintain with the modular design. Rubber seals added to protect the printer from dust, liquid among other foreign objects.

Have your device tailored to your brand

Apply your logo and brand color to the device to show your brand personality.

---

SUNMI D3 MINI Tech Specs

General Configuration

• OS: SUNMI OS (based on Android 13)
• Processor: Qualcomm hexa-core, up to 2.4GHz /1.9GHz
• Memory: 3GB RAM+32GB ROM
• Card Reader Support: TypeA&B card, Mifare card, Felica card; Comply with ISO/IEC 14443, ISO 15693 standards; Read distance 0-4cm
• Scanner: A 1MP built-in scanner for 1D/2D barcode reading
• PSAM Card Slot: 2*PSAM, 3.0V supported
• SIM Card Slot: 2*SIM, support 1.8V/3.0V
• Speaker: 1*3W
• Network: 2G&3G&4G
• Wi-Fi: 2.4GHz & 5GHz IEEE 802.11 a/b/g/n/ac supported
• Bluetooth: Bluetooth 2.1/3.0/4.2/5.0 and BLE supported
• Indicator: Light Blue
• Button: 1*Power button (lock screen) 1*Reset button (hidden)
• Environment: Operating temp.: 0°C~40°C Storage temp.: -20°C～60°C
• Ports: 3*USB 3.0 Type A port,  1*RJ11 serial port,  1*RJ12 cash drawer port,  1*RJ45 LAN port,  1*audio jack,  1*power port,  1*MicroUSB debug port (hidden)

	58mm version	80mm version
Product model	T1720/T1721	T1730/T1731
Display	Main: 10.1" HD, IPS, 800*1280, 300nits; 10-point capacitive touch display Secondary: 2.4" seven-segment display	Main: 10.1" IPS, HD, 800*1280, 300nits; 10-point capacitive touch screen Secondary: 4" IPS, WVGA, 480*800, 300nits capacitive touch screen
Printer	Built-in 58mm thermal printer Print speed: up to 100 mm/s Service life: 50Km Paper roll OD: 50mm	Built-in 80mm thermal printer Auto cutter Print speed: 250mm/s Service life: 150Km Paper roll OD: 60mm
Battery	Built-in battery 2600mAh	N/A
Power Adapter	Input: AC 100~240V/1.5A Output: DC 24V/1.5A/36W	Input: AC 100~240V/1.7A Output: DC 24V/1.5A/60W
Dimensions	250*213*91mm	250*231*108mm
Weight	1,1kg	1,4kg
