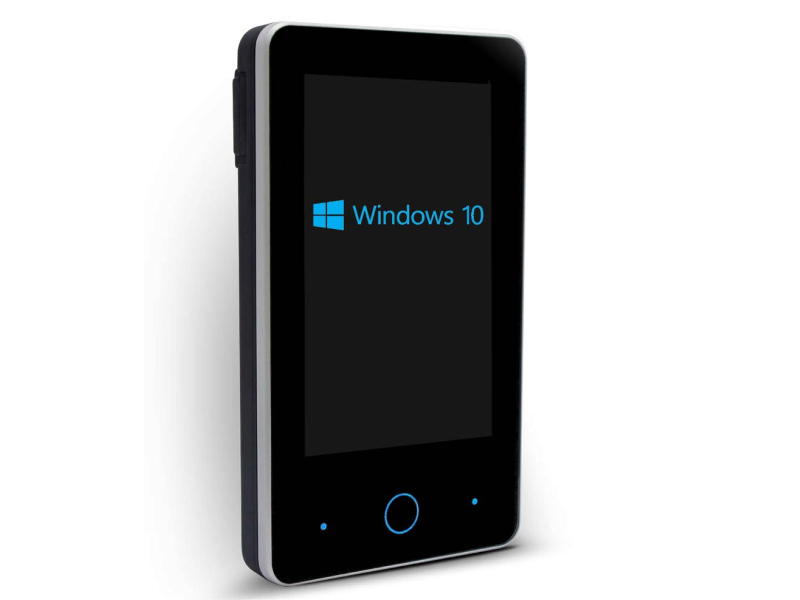

XTrax 7 Win Terminal
- Multimedia terminal with Windows 10 operating system
- 7'' capacitive touchscreen display
- For software developers
- Card Reading Technologies:
- Desfire: RFID Desfire (No SAM) - ISO 14443A/B, ISO 15693, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2, NFC
- RFID Legic (chipset 4200)
- Multi-technologies: RFID 125KHz (EM4102), 14443A, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2
- Antenna: single or dual
XTrax 7 Win and XTrax 10 WinWide
- Uncompromising multimedia
Large touch screen display in two sizes: 7 or 10 inches. Built-in speaker and microphone for your multimedia applications. XTrax 10 WinWide also integrates a 2Mpx camera and a thermal sensor.
- Windows 10 operating system
A real PC dressed as a data collection terminal with Windows 10 IoT Enterprise 2016 LTSB 64-bit operating system and Intel Celeron N3350 processor up to 2.0 GHz with 4GB RAM and a 64GB MSATA industrial disk. 10/100/1000 Mbit/s LAN port. WiFi or Bluetooth via commercial USB sticks. No attendance detection or access control application on board.
| Two versions | |
|---|---|
| 7'' Display | Capacitive touch screen – resolution 800x400 |
| 10'' Display | Capacitive touch screen – resolution 1280x800 and 2Mpx camera included |
- Integrated reader
1 port with MOLEX for connecting the internal reader if present, and 1 port with screw terminals for connecting an external reader or other device. The terminal can be ordered with an internal RF reader already mounted (connected to the TTL serial port with MOLEX connector). The software will receive the identification code from the reader via serial or in the keyboard buffer. For more complex operations, the software will need to implement communication with the reader: protocols, commands, and decodings.
- All kinds of connections
HDMI for connecting an external display, RS485 on terminal block, TTL serial port on terminal block (for external reader/device), TTL serial port with MOLEX (used by the internal reader if present), 2 internal USB 3.0 ports (no external USB).
- Power supply
- External 12 Vdc, 2 A power supply.
- Optional POE
- Integrated I/Os controllable via software
- 2 onboard relays
- 2 digital inputs for clean contacts
- 2 internal USB 3.0 ports
- Ethernet 10/100/1000 Gbit/s POE
- 2 TTL serial ports
- RS485 port
- HDMI
| SKU | 974.101_CONFIG |
|---|
