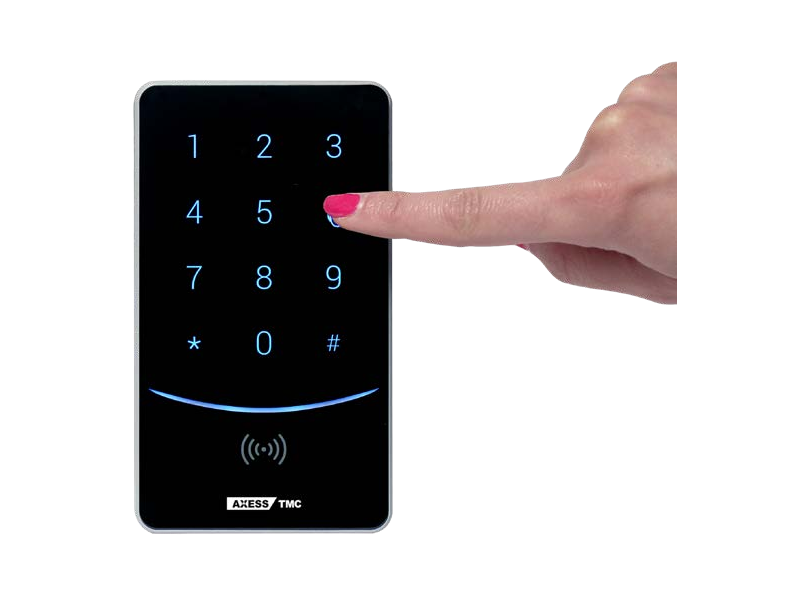

XA4K - IP55 terminal with keyboard

XA4 and XA4K are the innovative and versatile Axess TMC terminals, designed for automatic identification. Highly reliable and compact, the terminals are also available with keypad (XA4K) to ensure a PIN+badge dual recognition system.

Their modern design and sleek lines make XA4 and XA4K the ideal access control terminals perfect for all settings, including the most sophisticated.

• Control up to 8 independent access points

The terminals allow you to completely control up to 8 independent access points (breach, door left open, failed pass, etc.) thanks to the expansion modules that can be connected in RS485: up to 8 between readers and I/O modules.

• Software

The CLOKI web application is integrated and allows you to manage simple access control systems without installing any software on a PC. XA4 and XA4K can also be integrated into an XAtlas software-managed access control system.

• Events in real-time

The device can work online by transferring events in real-time to an HTTPS server, or validate based on local tables and store in the high capacity internal memory (micro SD).

• POE power supply

The Power Over Ethernet power supply, supplied as standard, allows activating
the terminals using a single network cable, while the integrated battery allows up to 1 hour of operation in the absence of power.

• LED lighting and acoustic signals

The three-color LED lighting – blue, red and green – signals the result of the recognition and the possibility of accessing the gate (green: gate is open; red: gate is locked). These are combined with the acoustic signals of the built-in buzzer.

---
