STRENGTHS

WEB interface.

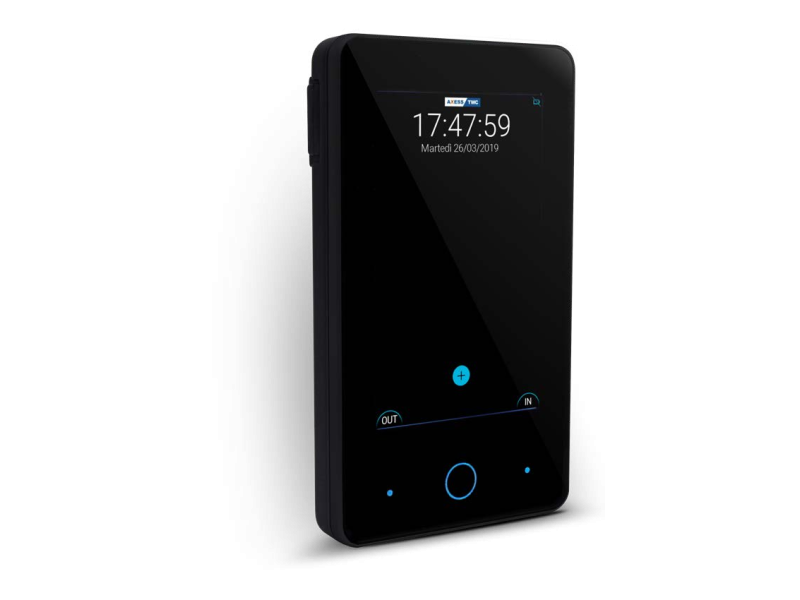

X7 and X7 Glass are completely configurable and manageable via web (configuration parameters, cards, users with name, authorizations, review of transaction records, configuration of access points, etc.).

Wide configurability of the graphical layout

The display layout is fully customisable. You can create the user interface that best suits your needs: decide on the size and position of the clock, create functional keys by defining their size and colour to access specific or customised functions (e.g., multistep procedures), display backgrounds, etc.

Ready to use.

All the time & attendance and access control functions are already inte- grated and can be configured via web (time slots, reason codes, sirens, transit with PIN, whitelist, etc.).

Built in CLOKI WEB Software to manage basic Time&Attendance and Ac- cess Control plants without installing any software on PC. All is operated through a web browser.

Integrated management of access points .

X7 and X7 Glass manage completely all states (alarm, break in, forced lock, transit that did not occur, etc.) of up to 8 doors or 4 turnstiles using up to 8 optional RS485 expansion boards.

Up to 3 readers can be connected directly to the terminal.

An internal reader and two external readers. One of the readers can be biometric with fingerprint enrolment capacity directly from the terminal (via FingerBox applied under the terminal). Terminal is compatible with different connection standards: Clk&Data, Serial, Wiegand. Format and decoding of each reader can be defined independently.

Wide range of I/O and high security.

• 1 relay on board (for door opening or siren activation at programmable times);
• 2 inputs on board;
• I/O can be expanded adding optional boards which can be installed in protected areas making relays and inputs inaccessible and thus guaran- teeing maximum gate security: up to 8 optional boards can be connected: I/O boards, RF readers, Biometric readers, pin pads also in By adding FD-NeoMAX board only there will be total of 17 relays and 18 inputs, available for the complete management of 8 doors or 4 turnstiles

Does not require a middleware in small installations.

The customisable record format and ability to automatically send transac- tion records to the FTP server in a scheduled manner X7 to be used directly with any software.

Standard communication protocols.

HTTPS for secure communications with server. X7 does not require DLL for integration.

WiFi: A version with integrated WIFI is available.

OTHER ADVANTAGES OF THE X7

Touch Screen.

X7: touch screen display with resistive technology X7 Glass: capacitive touch screen display

Color graphic display.

The large 7’’ color display with resolution of 800x480 pixel allows intuitive user interaction , and allows to clearly show user transactions as well as select reason codes with a simple touch from a list or menu.

Integrated gates management.

X7 and X7 Glass manage all states (alarm, breach, forced lock, transaction failed, door left open, etc.) of up 8 doors or up to 4 turnstiles via the 8 optional boards.

Multiple gates management.

X7 is able to fully manage a multi-gate plant, thanks to the availability of a wide range of optional devices that can be connected to the terminal:

• FD-NeoMax (with 2 relays and 2 inputs and connector for 1 reader).
• FD-RFID5K or FD-RFID4K (RF reader with numeric keypad for PIN, IP65 and shock resistant).
• FD-RFID4 or FD-RFID5 (RF reader, IP65 and shock resistant . Also with Bluetooth Low Energy technology BLE).
• XFinger (biometric fingerprint reader).
• FD-RALL (RFID reader with display).
• AX BIO (biometric reader with button for BTicino electrical box).
• AX RF (RF reader with button for BTicino electrical box).

RF5 multi-technology reader.

X7 and X7 Glass, feature the RF5 multi-technology reader, are able to read the following cards:

• 125 kHz EM4102 and compatible,
• 56 MHz Mifare: Ultralight, Classic 1K, 4K, Classic EV1 1K, DESFIRE.

The RF5 Reader can be configured for one-way use (entry or exit) or two- way use (entry and exit on two ends of the reader).

X7 and X7 Glass, simultaneously reading 125 kHz and 13.56 MHz technolo- gy, provide significant benefits in mixed technology environments or when changing card technology.

More information in the product data sheet attachment.
