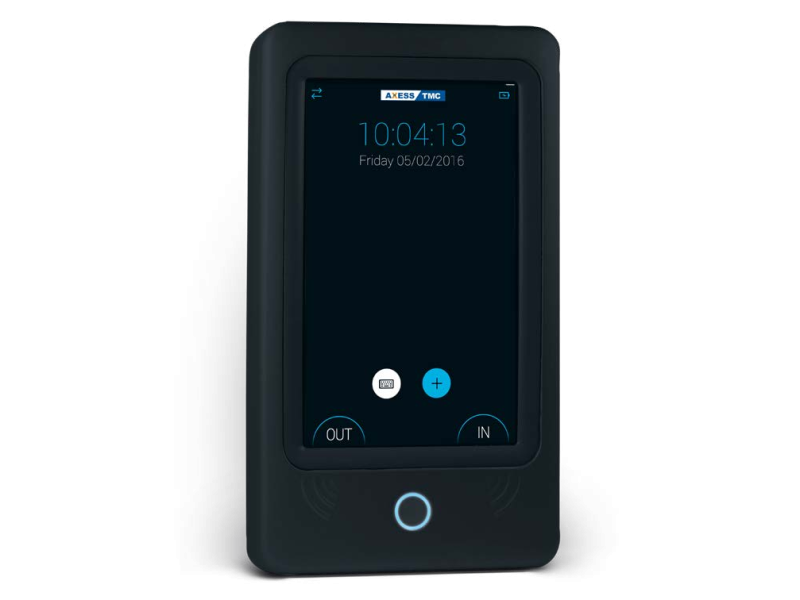

X7 terminal - mono Desfire

POE Multifunction Terminal with Gate Management and Large 7" Display

Suitable for all types of work environments, including outdoor

Perfect for displaying badges, messages to users, images, or a lot of data thanks to the large display and customizable screens.

• Orientation: horizontal or vertical
• RF5 Multi-technology Reader

X7 and X7 Glass, with the new RF5 reader, can read cards:

• 125 KHZ EM4102 and compatible
• 13.56 MHz Mifare: Ultralight, Classic 1K, 4K, Classic EV1 1K, DESFIRE
• 14443A
• NFC Forum Type2 tags
• Antenna: single or dual
• WEB Interface

  The terminals are fully configurable and manageable via the web (configuration parameters, cards, users by name, permissions, timestamp review, gate configuration, etc.).

• Ready to use

All attendance detection and access control functions are already integrated and configurable even from the web (time bands, reasons, sirens, PIN access, white list, etc.).

• Memory

Internal uSD (industrial, 4 GB) included. Stores configurations, users (over 100,000), and timestamps (over 1M). Replacement recommended every 3 years.

• Complete management of independent gates (up to 8 doors)

The terminals can fully manage a multi-gate access control system thanks to the wide range of optional devices they can control.

• Up to 3 connectable readers - one internally integrated reader and 2 external readers
