X7 GPRS 4G External antenna
- Card Reading Technologies:
- Desfire: RFID Desfire (No SAM) - ISO 14443A/B, ISO 15693, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2, NFC
- RFID Legic (chipset 4200)
- Multi-technologies: RFID 125KHz (EM4102), 14443A, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2
- Antenna: single or dual

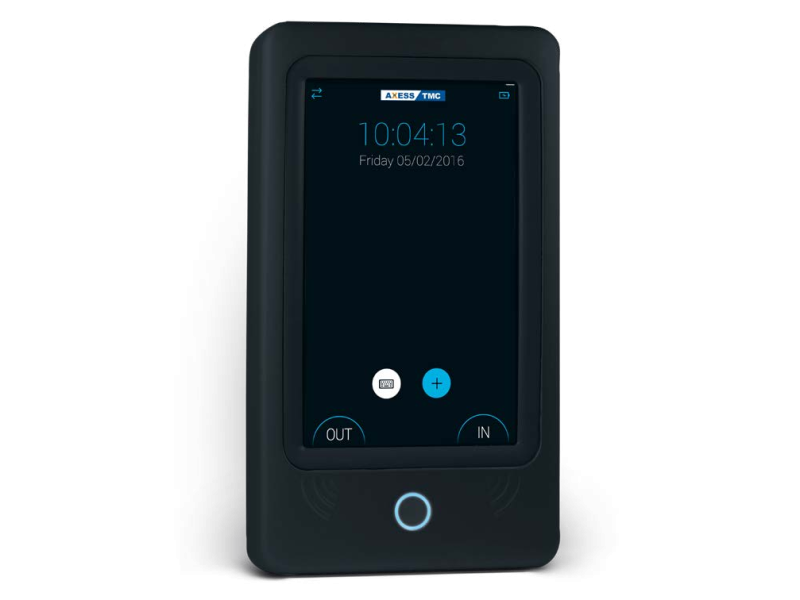

POE Multifunction Terminal with Gate Management and Large 7" Display
Suitable for all types of work environments, including outdoor
Perfect for displaying badges, messages to users, images, or a lot of data thanks to the large display and customizable screens.
- Orientation: horizontal or vertical
- RF5 Multi-technology Reader
- 125 KHZ EM4102 and compatible
- 13.56 MHz Mifare: Ultralight, Classic 1K, 4K, Classic EV1 1K, DESFIRE
- 14443A
- NFC Forum Type2 tags
- Antenna: single or dual
- WEB Interface
The terminals are fully configurable and manageable via the web (configuration parameters, cards, users by name, permissions, timestamp review, gate configuration, etc.).
X7 and X7 Glass, with the new RF5 reader, can read cards:
| Colour Touch Screen Display | |
|---|---|
| X7 | Resistive touch screen – resolution 800x480 |
| X7 GLASS | Capacitive touch screen – resolution 800x480 |
- Ready to use
- Memory
- Complete management of independent gates (up to 8 doors)
- Up to 3 connectable readers - one internally integrated reader and 2 external readers
All attendance detection and access control functions are already integrated and configurable even from the web (time bands, reasons, sirens, PIN access, white list, etc.).
Internal uSD (industrial, 4 GB) included. Stores configurations, users (over 100,000), and timestamps (over 1M). Replacement recommended every 3 years.
The terminals can fully manage a multi-gate access control system thanks to the wide range of optional devices they can control.
For more information, see the attached product sheet.
| SKU | 937.026_CONFIG |
|---|
