X7 GLASS Linux

In stock
Only %1 left
SKU
972.111_CONFIG

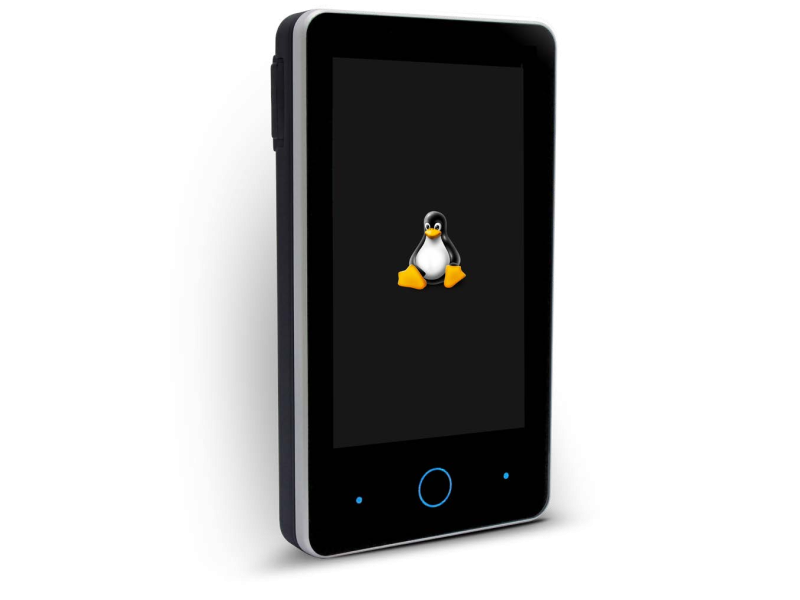

X7 GLASS Linux - RPi3B+ Debian Arm32 (1 GB RAM) - Display 7" - For Developers

  • Card Reading Technologies:
    • Desfire: RFID Desfire (No SAM) - ISO 14443A/B, ISO 15693, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2, NFC
    • RFID Legic (chipset 4200)
    • Multi-technologies: RFID 125KHz (EM4102), 14443A, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2
  • Antenna: single or dual
As low as €1,543.30

Key Features of XTrax 7 and XTrax 10 Wide

  • Uncompromising Multimedia

    Large touch screen display available in two sizes: 7 or 10 inches. Integrated speaker and microphone for your multimedia applications. XTrax 10 Wide also includes a 2MPx camera.

  • Linux Debian Operating System

    Equipped with an HTML 5 browser. No built-in attendance or access control applications.

  • Integrated Reader

    2 ports for connecting readers. Can be ordered with an integrated reader (communication with the reader and decoding must be developed in your software).

  • Communication Ports

    2.4 and 5 GHz WiFi - 1 Gbit/s LAN - Integrated BLE.

Models for Every Need
X7 GLASS Linux based on Raspberry Pi 3 with 1 GB RAM, 7-inch display 800x480
XTrax 7 based on Raspberry Pi 4 with 4 GB RAM, 7-inch display 800x480, adjustable in portrait or landscape
XFace 7 based on Raspberry Pi 4 with 4 GB RAM, 7-inch display 800x480, integrated 2MPx camera. Software for facial recognition
XTrax 10 wide based on Raspberry Pi 4 with 4 GB RAM, 10-inch display in 12-inch landscape format, integrated 2MPx camera

  • Power Supply With optional POE or external power supply 8-14 V. Integrated backup battery of 1,500 mAh for operation in the absence of power.

  • Abundant I/O and High Security
    • 2 on-board relays NA or NC
    • 2 on-board digital inputs
    • 3 USB host 2.0 ports (1 external)
    • 10/100/1000Gbit/s Ethernet
Further Information
More Information
SKU 972.111_CONFIG
