X4 terminal

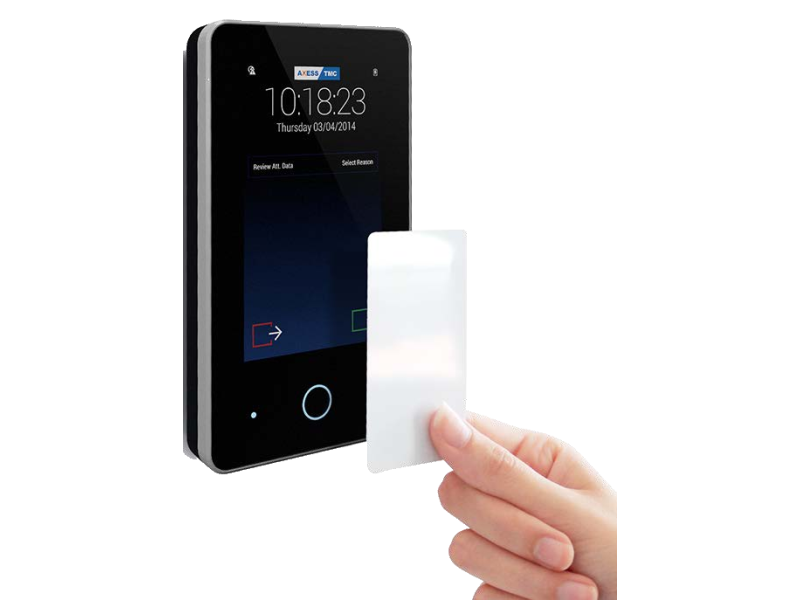

Access Control and Time & Attendance terminal X4 / X4 GLASS

Compact and Elegant Terminal with 4.3-inch 480x272 Resistive Touch Screen Display (Capacitive in X4 GLASS)

Installable in vertical or horizontal orientation.

Offers all the features of POE terminals and in particular:

• Manages up to 8 independent access points (door or turnstile) - Only 1 if managed by C-XAtlas
• Up to 8 devices on the RS485 port (PIN keypad, RF readers, Biometric readers, I/O Modules, etc.). Possibility of expanding I/Os by remote placement in a secure zone
• 1 NO or NC relay, 2 digital inputs - Expandable through 485 modules (FD Neo-Max). 1 external USB host 2.0 port, 10/100 POE Ethernet. Optional built-in WiFi module. Standard HTTP, HTTPS, and FTP protocols
• Standard or POE power supply; Battery: 1 hour of operation (125Khz version)
• Memory: Included internal uSD (industrial, 4 GB). Stores configurations, users (over 100,000), and timestamps (over 1M). Recommended replacement every 3 years
• Online operation - Real-time sending of timestamps/events to an HTTPS server
• Offline operation - Validates user using local tables, operates access point, and records locally
• XAtlas operation - Integrable into the XAtlas access control system
