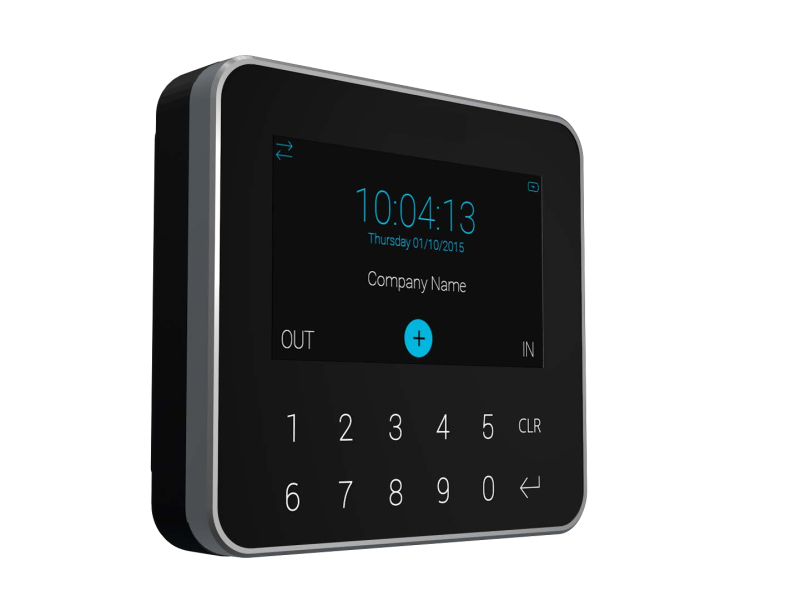

X3 Terminal - GPRS 4G internal antenna

The X series terminals (X1, X2, and X3) are WEB-based time attendance and access control terminals that combine compactness and robustness with functionality, technology, and design.

Features

• Compact: only 120x130x52mm
• Robust - IP55 protection grade
• Transflective Display: 128x64 resolution with up to 7 lines for 24 characters
• Available in three colours: Grey, Matte Black, and Glossy Black
• Complete control of 1 entry point (door or turnstile)

• Internal RFID reader for various technologies, optional external readers available: RFID, magnetic, or barcode
• External fingerprint reader (optional) - optical or capacitive - 9,500 templates; operates in 1:N identification or 1:1 verification with templates stored in the terminal's memory or on the RFID card
• 1 NO or NC relay for siren or access control, 2 digital inputs. 1 external USB host 2.0 port. Ethernet 10/100 POE GPRS version. Standard HTTP and FTP protocols
• Power supply: standard or POE
• Battery: 1-hour operation (for 125KHz version)
• Memory: built-in industrial uSD (4GB) that stores configurations, users (over 100,000), and clockings (over 1M). Replacement recommended every 3 years
• Web interface - fully configurable and manageable via web from any browser (configuration parameters, cards, users with names, permissions, clocking review, gate configuration, etc.)
• Ready-to-use - all attendance and access control functions are already integrated and configurable via web (time bands, reasons, sirens, PIN passage, White list, etc.)
• Integrated gate management - capable of fully managing all states (alarm, tampering, forced blocking, non-occurred passage, etc.) of a hinged door or turnstile
• Complete gate control (tampering, open door, non-occurred passage)
• Transactions automatically downloaded to an FTP server in a configurable format

GoPlanner

You can complete your access control and attendance system with our softwares GoPlanner TIME and GoPlanner ACCESS. Designed to meet the specific needs of your company, our softwares offer advanced features for shift planning, leave management, and report generation, ensuring effective personnel supervision. For more details or to request a DEMO, visit the dedicated website: goplanner.it
