X3 Terminal - GPRS 4G external antenna
In stock
Only %1 left
SKU
931.027_CONFIG
- External antenna: includes 5-metre cable for connecting the external antenna with the modem
- Card Reading Technologies:
- Desfire: RFID Desfire (No SAM) - ISO 14443A/B, ISO 15693, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2, NFC
- RFID Legic (chipset 4200)
- Multi-technologies: RFID 125KHz (EM4102), 14443A, Ultralight, Mifare Classic 1K and 4K, Desfire EV1 and EV2
- Keypad: numerical membrane keypad (12 keys)
- Antenna: single or dual
As low as
€1,683.60
Related Products

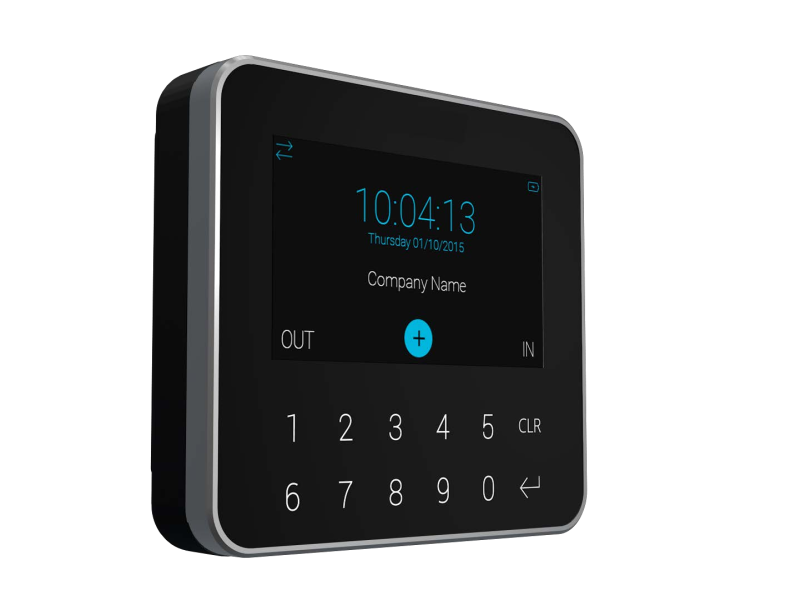

The X series terminals (X1, X2, and X3) are WEB-based time attendance and access control terminals that combine compactness and robustness with functionality, technology, and design.
Features
- Compact: only 120x130x52mm
- Robust - IP55 protection grade
- Transflective Display: 128x64 resolution with up to 7 lines for 24 characters
- Available in three colours: Grey, Matte Black, and Glossy Black
- Complete control of 1 entry point (door or turnstile)
| Keypad: | |
|---|---|
| X1 | 6 function keys on the sides of the display |
| X2 | 10 numeric keys + 6 function keys for PIN transactions |
| X3 | Numeric keypad (12 keys) on a membrane |
- Internal RFID reader for various technologies, optional external readers available: RFID, magnetic, or barcode
- External fingerprint reader (optional) - optical or capacitive - 9,500 templates; operates in 1:N identification or 1:1 verification with templates stored in the terminal's memory or on the RFID card
- 1 NO or NC relay for siren or access control, 2 digital inputs. 1 external USB host 2.0 port. Ethernet 10/100 POE GPRS version. Standard HTTP and FTP protocols
- Power supply: standard or POE
- Battery: 1-hour operation (for 125KHz version)
- Memory: built-in industrial uSD (4GB) that stores configurations, users (over 100,000), and clockings (over 1M). Replacement recommended every 3 years
- Web interface - fully configurable and manageable via web from any browser (configuration parameters, cards, users with names, permissions, clocking review, gate configuration, etc.)
- Ready-to-use - all attendance and access control functions are already integrated and configurable via web (time bands, reasons, sirens, PIN passage, White list, etc.)
- Integrated gate management - capable of fully managing all states (alarm, tampering, forced blocking, non-occurred passage, etc.) of a hinged door or turnstile
- Complete gate control (tampering, open door, non-occurred passage)
- Transactions automatically downloaded to an FTP server in a configurable format
GoPlanner
You can complete your access control and attendance system with our softwares GoPlanner TIME and GoPlanner ACCESS. Designed to meet the specific needs of your company, our softwares offer advanced features for shift planning, leave management, and report generation, ensuring effective personnel supervision. For more details or to request a DEMO, visit the dedicated website: goplanner.it
More information about individual models in the product data sheet attachment
Further Information
| SKU | 931.027_CONFIG |
|---|
Attachments
XFamily_en
