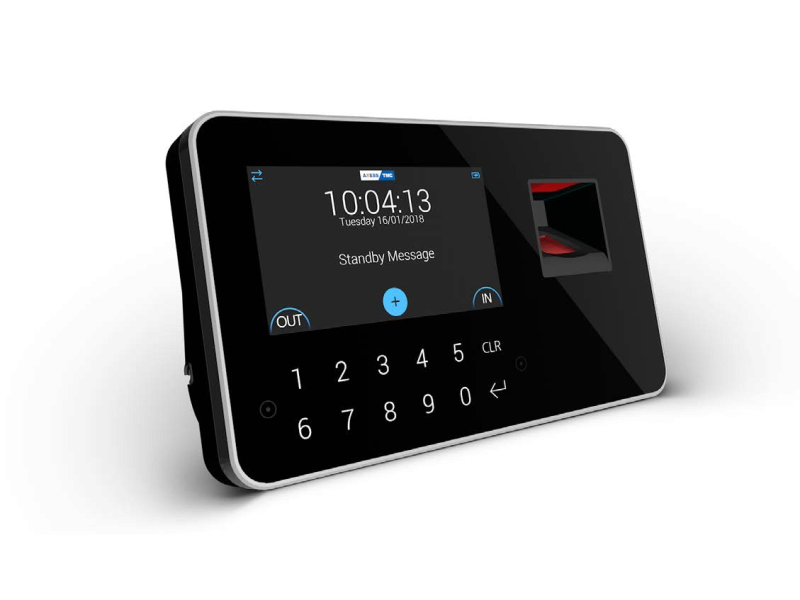

X3BIO Terminal

X3BIO terminals feature biometric technology and ensure top security for Access Control and Time&Attendance applications.

The XBIO line terminals are multifunction devices for time & attendance and access control suited to any work environment where a precise and reliable control is desired.

---

Variety of identification methods in a single terminal

The terminals of the XBIO Family range enable identifying the user with:

• The use of the biometric sensor (verification or identification);
• Typing the code on the keypad (code alone or code+fingerprint);
• Proximity tags (tag alone or tag + fingerprint).

---

Safe storage of the fingerprint

The terminal can store up to 9.500 fingerprints (version "Plus" up to 25.000 fingerprints) and manage up to 9.900 users. The fingerprint image is not stored, but only its encrypted model. It is also possible to memorize the fingerprint on the user s card (smart card, e.g. Mifare) which allows to exceed the limits of fingerprints and also avoid the storage of biometric data subject to special security rules.

---

Operating mode

The terminal can manage the access point connected to it in two ways:

• OFFLINE: with tables stored in the internal file system (SD 4 GB);
• ONLINE: exchanging HTTP messages in real time with a server governing the access point, validating the badge, displaying messages, and controlling any other function of the terminal.

The terminal and user functions can be configured and managed:

Via WEB through a browser thanks to an intuitive interface;
• by sending text files (also via FTP).

The basic parameters can also be configured directly from the supervisor menu of the terminal.

---

The advantages of X3BIO

Touch Screen

With the same compact size as X2BIO, X3BIO not only has a numeric keypad, but a touchscreen interface as well, making its use more intuitive.

Colour graphic display

The wide 4.3” colour display with 480x272 pixel resolution ofers detailed, well-defined reproduction of the screens, so transactions can be displayed and selectable reasons can be entered with a simple touch.

Integrated access point management X3BIO fully manages all statuses (alarm, breach, forced lock, failed pass, etc.) of 8 swing doors or 4 turnstiles via the 8 optional boards.

Multiple access point management

X3BIO can fully manage a multi-access point control system thanks to the wide range of optional devices it can control, including in combination:

• FD-NeoMax (with 2 relays and 2 inputs and connector for 1 reader)
• FD-RFID4K, FD-RFID5K (RF reader with numeric keypad for PIN, IP65 and impact-resistant)
• FD-RFID4, FD-RFID5 (RF reader, IP65 and

impact-resistant)

• AX RF (RF reader with button for bTicino box)
• XFinger (additional external biometric reader with or without badge reader)
• FD-RALL

Standard communication protocols HTTPS to ensure secure and encrypted communication with the server.

---

GoPlanner

You can complete your access control and attendance system with our softwares GoPlanner TIME and GoPlanner ACCESS. Designed to meet the specific needs of your company, our softwares offer advanced features for shift planning, leave management, and report generation, ensuring effective personnel supervision. For more details or to request a DEMO, visit the dedicated website: goplanner.it

---

More information in the product data sheet attachment
