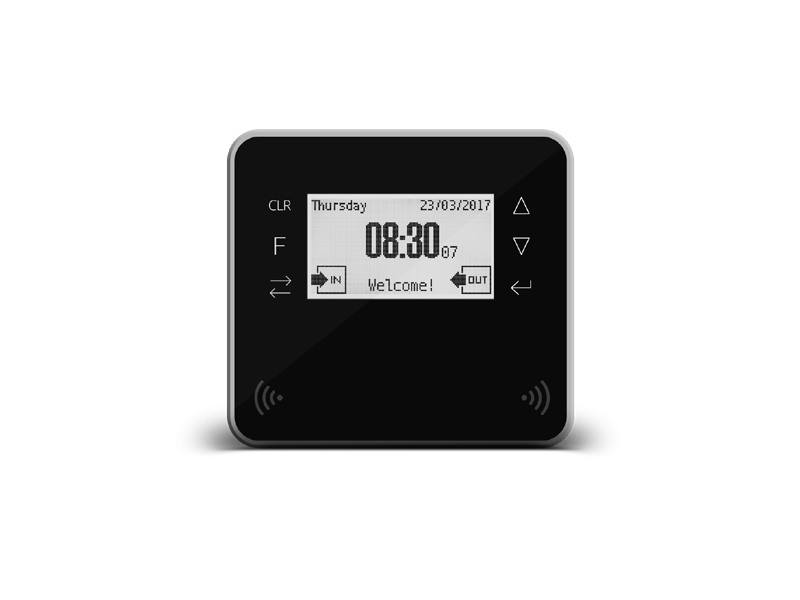

X1B GPRS ext Antenna Terminal - Dual Multitechnology

The X series terminals (X1, X2, and X3) are WEB-based time attendance and access control terminals that combine compactness and robustness with functionality, technology, and design.

• Compact: only 120x130x52mm
• Robust - IP55 protection grade
• Transflective Display: 128x64 resolution with up to 7 lines for 24 characters
• Available in three colours: Grey, Matte Black, and Glossy Black
• Complete control of 1 entry point (door or turnstile)
• Keypad:
  • X1: 6 function keys on the sides of the display
  • X2: 10 numeric keys + 6 function keys for PIN transactions
  • X3: Numeric keypad (12 keys) on a membrane
• Internal RFID reader for various technologies, optional external readers available: RFID, magnetic, or barcode
• (optional) External fingerprint reader - optical or capacitive - 9,500 templates; operates in 1:N identification or 1:1 verification with templates stored in the terminal's memory or on the RFID card
• 1 NO or NC relay for siren or access control, 2 digital inputs. 1 external USB host 2.0 port. Ethernet 10/100 POE GPRS version. Standard HTTP and FTP protocols
• Power supply: standard or POE
• Battery: 1-hour operation (for 125KHz version)
• Memory: built-in industrial uSD (4GB) that stores configurations, users (over 100,000), and clockings (over 1M). Replacement recommended every 3 years
• Web interface - fully configurable and manageable via web from any browser (configuration parameters, cards, users with names, permissions, clocking review, gate configuration, etc.)
• Ready-to-use - all attendance and access control functions are already integrated and configurable via web (time bands, reasons, sirens, PIN passage, White list, etc.)
• Integrated gate management - capable of fully managing all states (alarm, tampering, forced blocking, non-occurred passage, etc.) of a hinged door or turnstile
• Complete gate control (tampering, open door, non-occurred passage)
• CLOKI: Integrated WEB application for attendance and access control
• Transactions automatically downloaded to an FTP server in a configurable format
