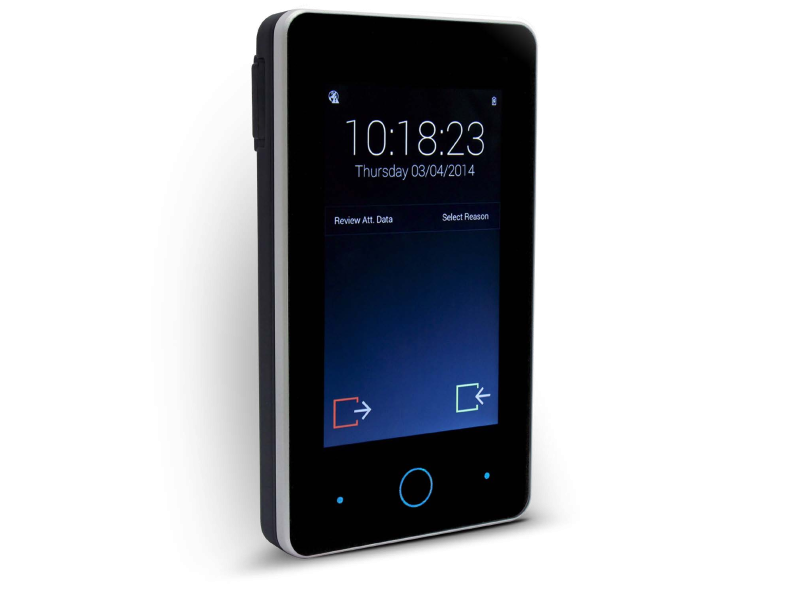

SuperGLASS 7 Light with camera

Strengths of SuperGLASS 7

SuperGlass 7 shares all the features of POE terminals and comes pre-installed with CLOKI software.

In addition to the standard version ("Light"), the "TRACK" version (Trax Compatibility Kit) is also available, which is compatible with previous versions of terminals now discontinued (script language "PROC", communication with proprietary DLL/OCX, expansion only with NeoMAX board).

Furthermore, we highlight:

• Marriage of Innovation and Design

  It adds prestige and style to any location. It plays music, slide shows, and voice messages to enhance the user experience.

• Uncompromising Multimedia

  Large 7-inch 800x480 capacitive touch screen display and integrated speaker capable of playing voice messages that simplify the user experience. Built-in microphone for VOIP functionality.

• Expandable with Additional Boards

  Up to 8 optional modules can be connected to the RS485 port (readers, keypads, I/O boards).

• Manage up to 8 Independent Access Points

  Complete management of multiple independent access points (up to 8 doors or 4 turnstiles) in all possible states (alarm, intrusion, forced entry, missed passage, etc.). Only 1 access point when managed by C-XAtlas.

• Readers of Every Type

  An internally integrated RF reader. Up to 10 external readers can be associated with managed access points: biometric, RF, BLE, PIN keypads, QR codes, magnetic, barcode, etc. The terminal can enroll fingerprints by using a biometric reader (FingerBox) placed under the terminal. Reader interface configurable: Clock&Data, Serial, Wiegand, RS485. Decoding of each reader can be defined independently.

• Messaging

  The large color display allows viewing of multimedia messages, both public and private, with read confirmation. Welcome your guests in style!

• Available with Integrated Camera

  The camera allows video streaming or taking photos of users during clock-in.

• Configurable Interface

  Backgrounds and buttons for standard or custom functions can be added.

• Abundant I/O and High Security
  • 2 on-board relays (for door opening or programmable siren activation)
  • 2 on-board inputs
  • 3 USB host 2.0 ports (1 external with password)
  • 10/100 POE Ethernet
  • Serial 232
  • RS485 port for expanding and remote controlling I/O
• Ample Storage Capacity

  Up to 100,000 users, 100,000 cards, and 10,000 permission groups (beyond these numbers, terminal responsiveness may decrease in certain situations).
