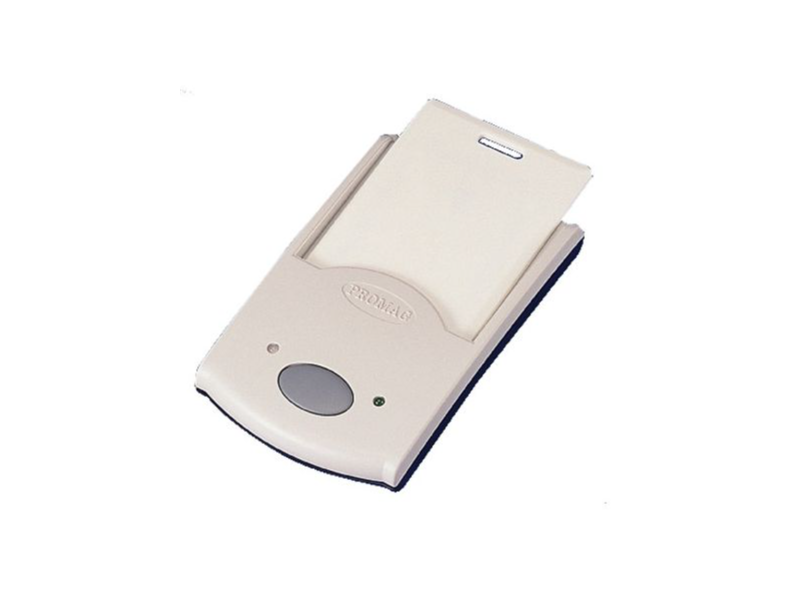

RFID Desktop reader PCR300
In stock
Only %1 left
SKU
PCR300_CONFIG
The PCR300 is a perfect security system for use with WinLoq, software that allows you to protect your system and prevent unauthorised use by others.
- User privacy with the BOSS PROTECTION function
- Privacy button to instantly blank the screen
- ID code verification of RFID proximity cards
- Instant system unlock/lock
- Slot to accept cards - to start WinLoq
- System is working when a registered card resides in the slot → Unlocked
- System is not working when no enabled card resides in the slot → Locked
As low as
€128.62
RFID Desktop readers PCR300 and PCR330
Promag PCR300 and PCR330 are desktop rfid readers which can be used for system logon / logoff, operator identification and many other desktop rfid applications.
PCR300 readers are available in several versions depending which card technology, casing and output you require:
- Card Technology:
- 125 kHz RFID (PCR300A / PCR330A)
- 13,56MHz Mifare (PCR300M / PCR330M)
- Case Type:
- Cradle slot
- Flat casing
- Output:
- Decimal
- Hexadecimal
Cradle slot is designed to accept RFID card as below:
System Unlocked - System can be used when the registered card is sitting in the cradle slot
System Locked - System cannot be used when the registered card is removed from the cradle slot.
Specifications
- Power requirements: 5 V / 200 mA
- Interface: USB (Virtual COM) or RS232
- Supported Card Types:
- 125kHz RFID (PCR330A)
- 13.56MHz MIFARE (PCR330M)
- Dimension (mm): W 65 X L 100 X D23 mm
- Card dimension: 86 x 55 x 2 mm maximum
| Available Versions | ||
|---|---|---|
| Interface | Technology | |
| PCR-300-AU | USB interface | 125kHz |
| PCR-300-AR | RS232 interface | 125kHz |
| PCR-300-MU | USB interface | 13,56 MHz (MIFARE version) |
| PCR-300-MR | RS232 interface | 13,56MHz (MIFARE version) |
| PCR-330-A | USB Keyboard Emulation | 125kHz |
| PCR-330-M | USB keyboard emulation | 13,56 MHz (MIFARE Version) |
| PCR-330-U | USB keyboard emulation | 125kHz (HID &Wiegand) |
More information in the product data sheet attachment
