RFID/10 White – IN/OUT Button - QR Reader/BLE/RFID

SECURITY AND DESIGN, IN THREE VERSIONS

The RFID/10 family includes three versions of readers, each available in two colors (white or black) and can be ordered with or without an integrated QR optical reader. All readers come equipped with a buzzer, a four-digit display for messages, and a multicolor LED backlight with diffused light. These features make user interaction particularly simple and intuitive.

Basic Version

Reads and writes RFID cards with different technologies (reading distance varies from 30 to 150 mm depending on the RFID technology used). It also includes Bluetooth Low Energy (BLE) technology, allowing users to identify themselves using their smartphone (our free APP is required). The reader interfaces with its controller via a reliable RS485 line with SPP protocol. This version is the ideal choice for access control.

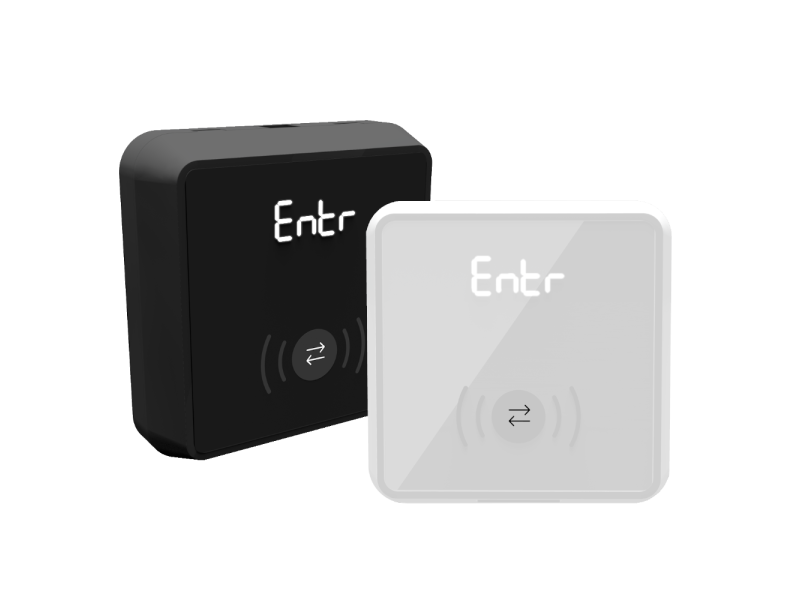

Version with In/Out Button

This version adds a button to all the features of the previous version. The front-facing button can be used by the user, for example, to decide the direction of the transaction between entry and exit, making this reader particularly suitable for attendance tracking.

Version with Numeric Keypad

In addition to inheriting the same features as the basic version, this reader is equipped with a numeric keypad, allowing users to enter PIN codes for identification. It is a flexible and secure solution for situations requiring greater user interaction.

Installation is simple and fast: RFID/10 can be mounted directly on the wall using through-holes or with a bracket for mounting on a circular flush-mounted box. A 3m cable is included. Communications are based on RS485 with the SPP protocol. The RFID/10 readers are designed to adapt to any environment, thanks to their compact size and ability to operate within a temperature range of -25 to +50 degrees C.
