RF A1 - proximity badge reader for access control

Name: RF A1 - proximity badge reader for access control
SKU: 904.711.60B
Price: 475.8 EUR
Availability: InStock

In stock

SKU

904.711.60B

€475.80

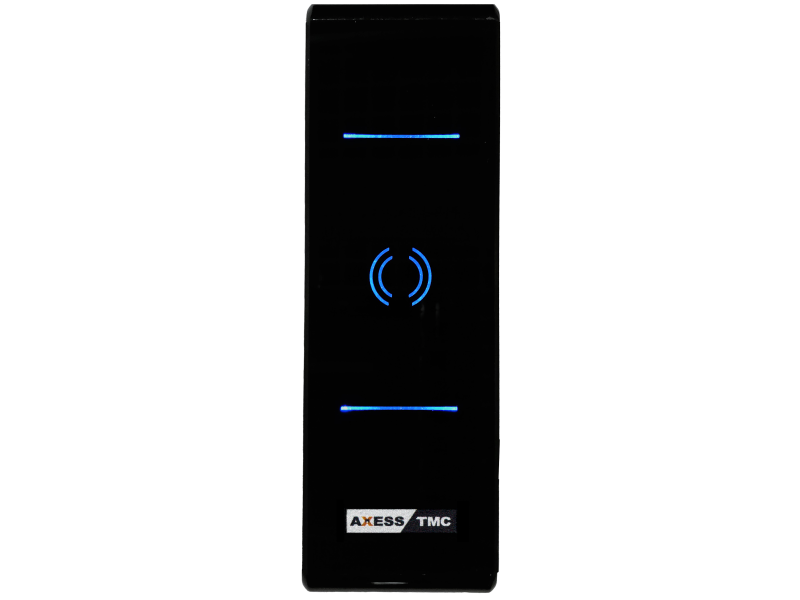

RF A1 is a proximity badge reader for access control, designed to meet various environmental requirements.

Multi-standard RFID reading unit (125kHz/13.56MHz/BLE) with a single antenna. The reading distance is influenced by the environment.
IP55 protection
Terminal pre-wired with a 3-meter multi-core cable
Data interface: RS485 with proprietary SPP slave protocol

READING	RF Multi-technology: RFID 125KHz 64-bit read-only (EM-H4102 compatible) - ISO 14443A/B, ISO 15693, Ultralight, Mifare Classic 1K and 4K, Desfire EV1/2/3, NFC - BLE (Bluetooth Low Energy).
DATA INTERFACE	RS485 with proprietary SPP slave protocol. It can be connected to terminals and controllers as an additional reader. In XAtlas systems, it can be connected to the RS485 master port of FM or XPoint devices.
ENCLOSURE	ABS and Hesaglas enclosure
PROTECTION LEVEL	IP55
DIMENSIONS	Height = 140 mm Width = 45 mm Depth = 23 mm
WEIGHT	Approximately 200 g
RELATIVE HUMIDITY	Max. 98% without condensation
OTHER FEATURES	Adjustable acoustic signal for badge reading confirmation RS485 with SPP protocol Multicolor LED indicators for: line error - reading error - access granted - access denied Spacer for RF A1 with cable connector
