Magnetic Card Reader MiniMag

Magnetic card reader MiniMag

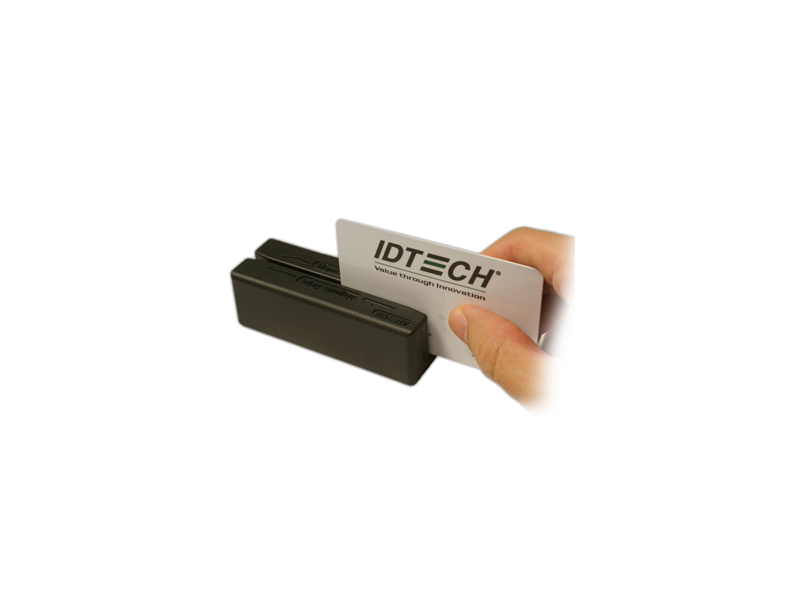

The MiniMag reader is a small magnetic stripe card reader that does not require external power supplies.

It reads the first, second and third track of the magnetic stripe.

Features

• Small size
• Ability to read single, double or triple track
• Powered directly from the serial port
• Does not require external power supplies
• Bidirectional reading
• Green or red LED indicates system status
• USB, RS232 or PS2 connection
• Windows driver available that simplifies programming
• Keyboard emulation
• ISO, CDL, AAMVA compatibility

Specifications

• Cable length: 1.83 m
• Weight: 165g
• Dimensions mm: 31.3 x 32.5 x 100
• LED indicators: 2 colors (green and red)
• indicating the status of the System
• Color: white or black
• Interface: USB in keyboard emulation, USB HID, USB CDC, PS/2 and RS232
• Operating conditions: 5 ~ 55°C
• 10% ~ 90% relative humidity without condensation
• Storage conditions:- 30 ~ 70°C, ~ 100% relative humidity
