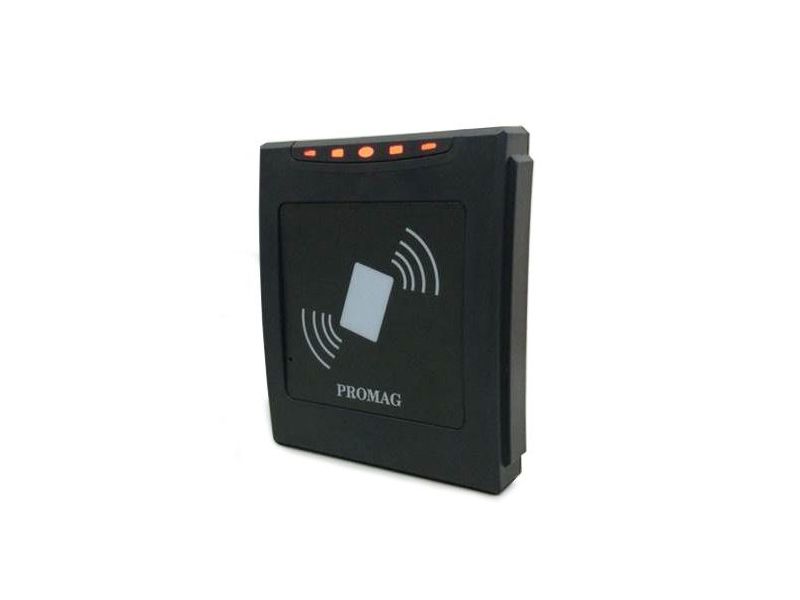

ER750 ISO14443A reader - PoE
ISO14443A UID Only
The ER750 series are ISO14443A Ethernet readers with built-in relay control and a water-resistant ABS casing. The RFID reader can also be assigned an ID number reader for communication between multiple units.
Internal LED and buzzer, also configurable.Ethernet with PoE option.Built-in relay control. Water-resistant.Configurable LED and buzzer. Compact size.The ER750 reader series complies with ISO 1443A and has a reading range of 7cm. ER750 is exclusively ISO14443A UID. ER750 is ISO14443A Sector Data or MAD.
FEATURES
Interface: Ethernet (Via CAT-5 / CAT-6)
DC Power: 7.5V - 24V / 125mA @ 12V (recommended power regulator)
Card Type: ISO14443A Classic (1K / 4K / 8K)
Frequency: 13.56MHz
Max. Reading Distance: ISO14443A(4Byte): Up to 7cm (MFA01A)
ISO14443A(7Byte): up to 4cm
Audio/Visual: Internal LED and buzzer.
Relay: Built-in relay (5A 120VAC or 5A 24 VDC)
Temperature Range:
Operating Temperature: -0°C ~ +60°C
Humidity: 10% ~ 90% non-condensing.
Dimensions: 112.3 (Length) x 96 (Width) x 22 (Depth) mm
| SKU | ER750-10 |
|---|---|
| Product type | Products |
