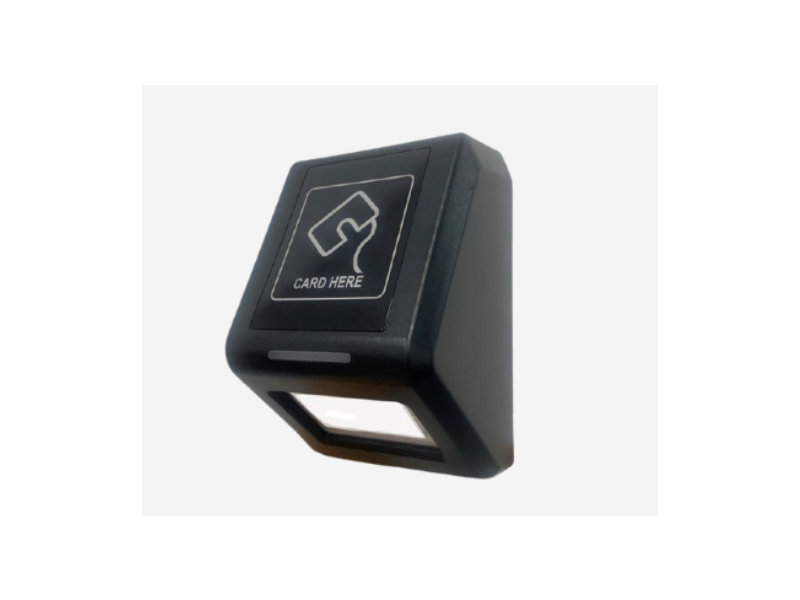

DQ Mini+ - QR/Barcode/RFID Reader for Outdoor Use
In stock
SKU
DQ MINI+ WGD
DQ Mini+ is a multi-technology reader, also suitable for outdoor use.
Reading capabilities:
-
13.56 MHz RFID cards
-
1D / 2D barcodes
-
QR codes
DQ Mini+ - QR/Barcode/RFID Reader for Outdoor Use
DQ Mini+ is a 13.56 MHz RFID card reader, 1D/2D barcode and QR code reader with RB LED display, suitable for outdoor use.
Features
- Reads various sizes of barcodes/QR codes
- Suitable for outdoor use (IP65)
- Fast scanning and accurate reading
- Brightness level adjustable for day and night; Built-in light sensors for dark environments
- Accepts all NFC and EMV cards
- Wiegand connection (32/34/56/58/64/66), RS-232/485, USB
- Installation: free-standing, wall-mounted, desktop, security door, etc.
Technical Specifications
| Item | Details |
|---|---|
| CPU | ARM9, 300MHz |
| Memory | 4GByte(eMMC) Flash / 56KB SRAM |
| Frequency | 13.56MHz |
| Interface | Wiegand (32/34/56/58/64/66), RS-232/485 or USB |
| Contactless Speed | ISO 14443 A/B, Mifare, ISO 18092(NFC), FeliCa, ISO 15693 |
| Contact | 1 SAM ISO7816 |
| Display | 2.4" SPI, 240x320, Touch, RB LED |
| Barcode | 1D / 2D, 640x480 px, ≥3.9 mil, 72º(H) * 57º(V) |
| Power Supply | DC 9 ~ 24V |
| Temperature | 0 ~ 70 ℃ (Operating) / -20 ~ 80 ℃ (Storage) |
| Humidity | 30~90% (Operating / Storage) |
| Certifications | CE, FCC, EAC |
| Protection | IP65 |
Applications
- Access control and time tracking
- Reservation systems
- Loyalty programs
- Parking management
- Kiosk integration
