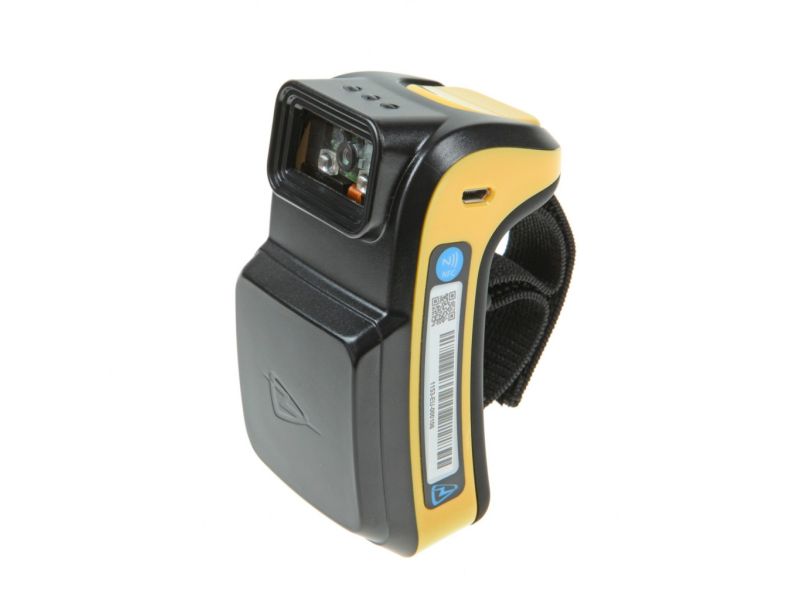

1153 Bluetooth® Wearable RFID Reader with Imager2D
In stock
SKU
1153-EU-BT-UHF-IMG
- Compact, lightweight, and ergonomic
- 2D Imager
- UHF RFID and 2D barcode data acquisition in a single integrated Bluetooth® device
- Two trigger buttons
- Micro USB cable and USB charger included
Wearable Bluetooth®UHF RFID reader 1153
The wearable UHF RFID reader with 2D imager is designed to communicate with a variety of host devices via Bluetooth® wireless technology.
The RFID reader chipset is optimized for low power consumption while providing excellent performance in a small and convenient form factor.
The reader includes high-performance 2D barcode data scanning to enable exceptional data collection transmission to connected devices.
| Physical and Environmental Characteristics | Dimensions: | 10.2 cm x 5.5 cm x 5.6 cm (LxWxH) |
|---|---|
| Weight (incl. battery): | 157 g / 5.5 oz |
| User input: | Two trigger buttons |
| User feedback: | Speaker, vibration motor, three LEDs |
| Power: | Removable, rechargeable 3.7 volt Lithium Polymer 1130 mAh battery pack, 4.2 watt hrs |
| Enclosure materials: | Polycarbonate |
| Performance Characteristics | |
|---|---|
| RFID Engine: | ST ST25RU3993 based |
| Communication protocols: | TSL® ASCII 2.0 parameterised command set. |
| Memory: | Optional Micro SD card (maximum 32GB capacity supported). Up to 500 million date and time stamped EPCs can be stored on a 32GB Micro SD card (separate purchase from alternative supplier). |
| Compatible Host devices (Bluetooth®): | Host device must have Bluetooth® wireless technology functionality supporting the Serial Port Profile |
| Compatible Host devices (USB): | Any Bluetooth® Host supporting the Serial Port Profile (SPP) or Human Interface Device (HID) profile (Android, iOS, Linux, Mac, Windows). |
| Environmental | |
|---|---|
| Operating Temperature: | -4°F to 140°F / -20°C to 60°C |
| Charging Temperature: | 14°F to 104°F / -10°C to 40°C |
| Humidity: | 5% to 85% non-condensing |
| Drop specification: | Multiple drops to concrete: 4 ft./1.2 m ambient, 3ft / 0.9m across the operating temperature range |
| Tumble: | 500 0.5 metre tumbles at room temperature (1,000 cycles) |
| Environmental Sealing: | IP54 |
| Electrostatic Discharge: | ± 15kVdc air discharge; ± 8kVdc contact discharge |
| MIL-STD 810F: | Meets and exceeds applicable MIL-STD 810F for drop, tumble and sealing |
| Rfid Performance | |
|---|---|
| Standards supported: | EPC Class 1 Gen 2 |
| Nominal read range: | up to 6.5 ft. /up to 2 m. |
| Nominal write range: | up to 3.3 ft. /up to 1 m. |
| Field: | 150-degree forward facing (approx.) measured from front of device |
| Antenna: | Internal Circularly Polarized |
| Frequency Range: | EU: 865-868MHz; US: 902-928MHz |
| Maximum Output Power: | Up to 25dBm maximum |
| Barcode Scanning | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imager: | TSL® custom 2D Barcode Scan Engine module | |||||||||||||
| Sensor Resolution: | 1280 x 960 pixels, rolling shutter | |||||||||||||
| Field of View: | Horizontal: 44.5°, Vertical: 33.5° | |||||||||||||
| Focal Distance: | From front of engine: 15.24 cm | |||||||||||||
| Aiming LED: | Green LED | |||||||||||||
| Illumination: | 1 warm ahite LED | |||||||||||||
| Symbologies Supported: | 1D: All major codes 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
More information in the attachment with the product sheet
