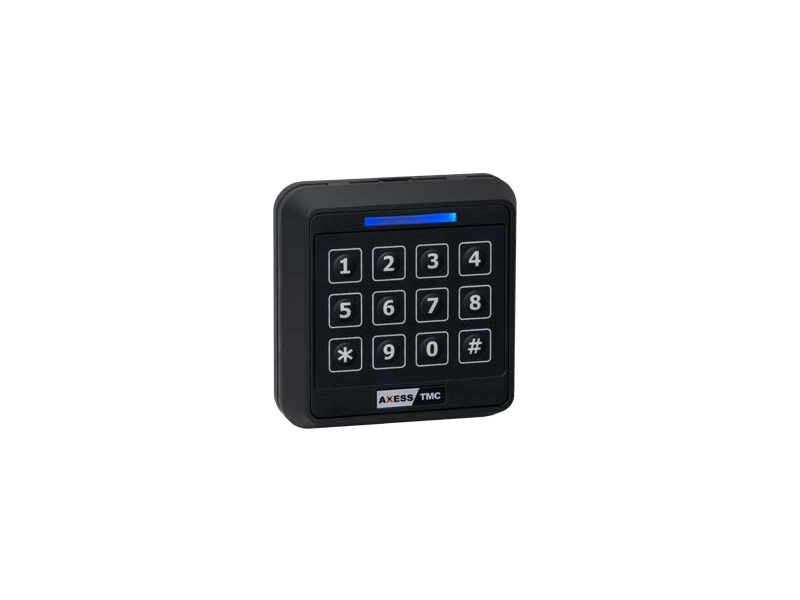

RFID/5K multi-technology reader with keypad

Name: RFID/5K multi-technology reader with keypad
SKU: 904.501.61
Price: 350.14 EUR
Availability: InStock

In stock

SKU

904.501.61

Case colour: charcoal black
IP65 degree of protection
Vandal-resistant grade IK08
Multi-technology - 125KHz (EM4102), 14443A, Ultralight, Classic 1K e 4K, Desfire EV1 e EV2
Keypad

€350.140

Description

Further Information

Attachments

Multi-technology readers with RGB LED and buzzer. External frame available in black or white. Removable rear terminal. Integrated BLE. 125Khz reader (EM4102), Classic 1K and 4K, Ultralight and Desfire EV1card. Dimensions: 80x80x23 mm (HxWxD).

Model 904.500.61:

RFID 125Khz (EM4102), ISO 14443A, Classic 1K and 4K, Ultralight, Desfire EV1. Four output formats: Clock and date, Wiegand 26 or 37 bit, serial (TTL or RS232) and RS232 with SPP protocol.

The code for each key is sent in SPP or Wiegand.

Further Information

More Information
SKU	904.501.61
Product type	Accessories

Attachments

Readers_RFID_en (621.74 kB) Download
