AX RF KIT - Black

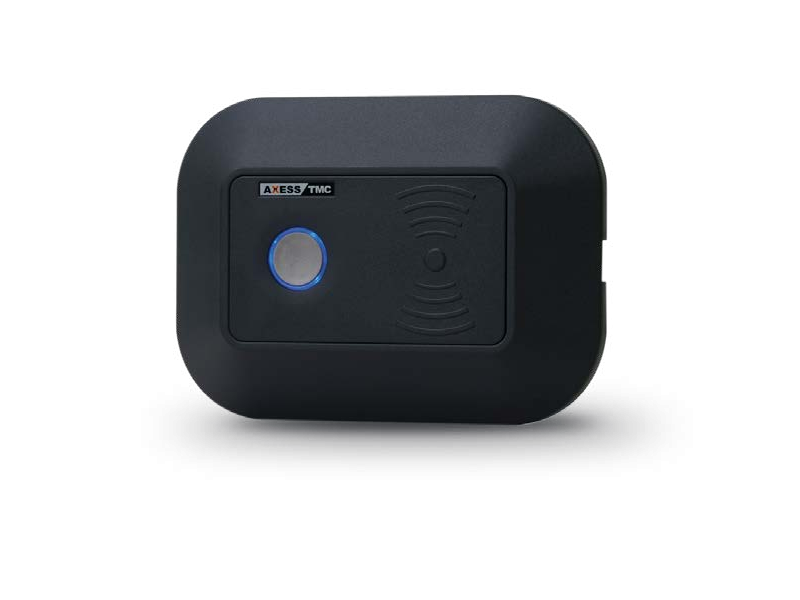

AX RF - Door opening terminal with Mifare reader

AX RF is a modern and stylish terminal that ensures high safety standards. Easy to install and configure, it allows controlling doors and alarm systems. The stand-alone version offers maximum ease of configuration made possible by special programming cards.

AX RF is a high security stand-alone system for opening doors that makes use of the most advanced identification and security technologies, all integrated in a Bticino 503 wall-mounted box.

The integrated RF reader, allows the device to identify users provided with a RF MIFARE card. The round button with multi-coloured LED can be configured to operate the internal relay, for example, to activate a doorbell. Alternatively, the internal relay can be used to unlock a locking system when a card is recognised as valid. The system also includes a buzzer and anti-tampering sensor.

Up to three I/O AX MAX cards (each with 2 relays and 2 inputs) can be connected to the device through a 485 port, which can be placed in a secure location ensuring the highest security standards.

The AX MAX optional cards perform the following functions:

• complete control of an access door (status of the door, exit button, lock, alarm);
• alarm control: arming and disarming;
• secondary relay: only activated by some users or fingerprints.

The configuration, registration and cancellation of users are performed using special cards (MASTER) and the light button.

AX RF can also function as a component of the XAtlas system becoming a slave to a controller of the system.
